Pressure vessel 2:1 semi-elliptical dished end heads elliptical bottoms

Product Description

Ellipsoidal head Description

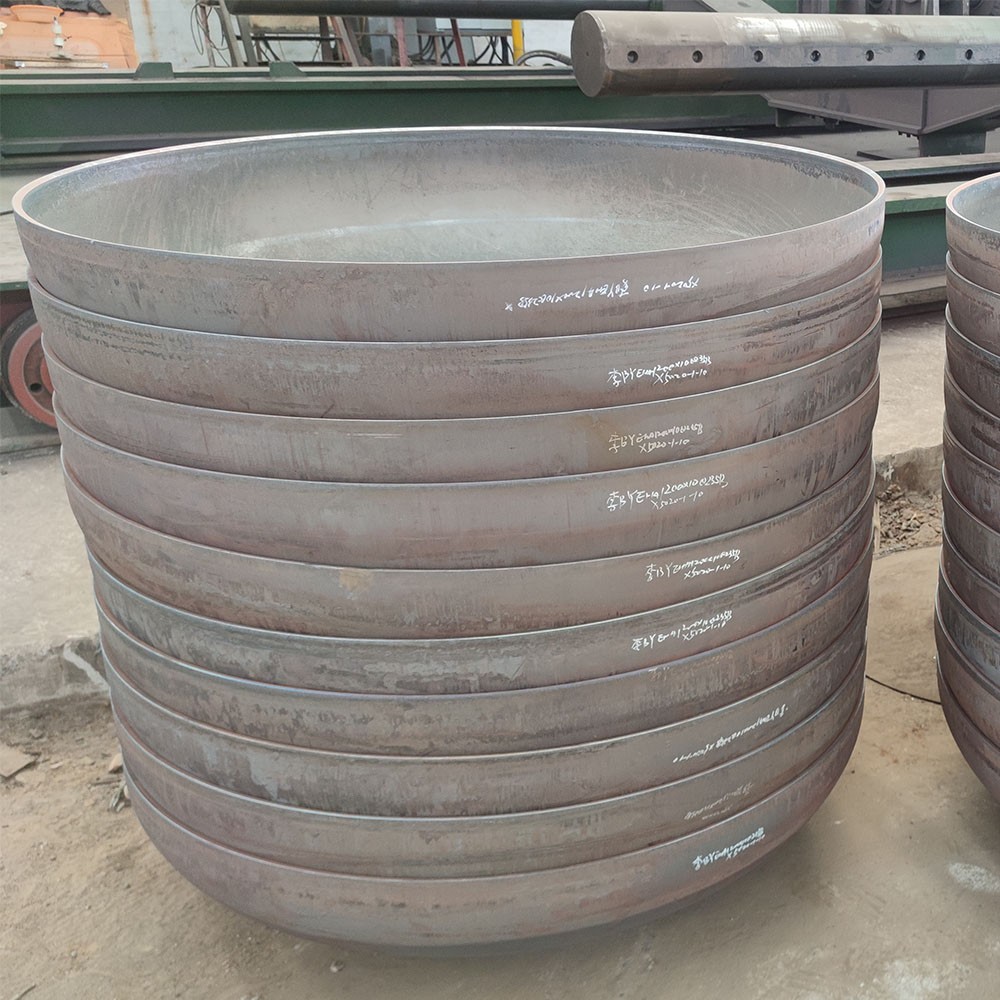

Ellipsoidal head (also called elliptical head or elliptical dish end) is usually made with Carbon steel, stainless steel, austenitic and non ferritic metals that can be cold worked. The shape of this ellipsoidal head is more economical, because the height of the head is just a fraction of the diameter. The elliptical dish end radius varies between the major and minor axis usually with the ratio is 2:1. The elliptical tank head is the economical solution for medium pressure tanks due to the reduced metal thickness requirement.

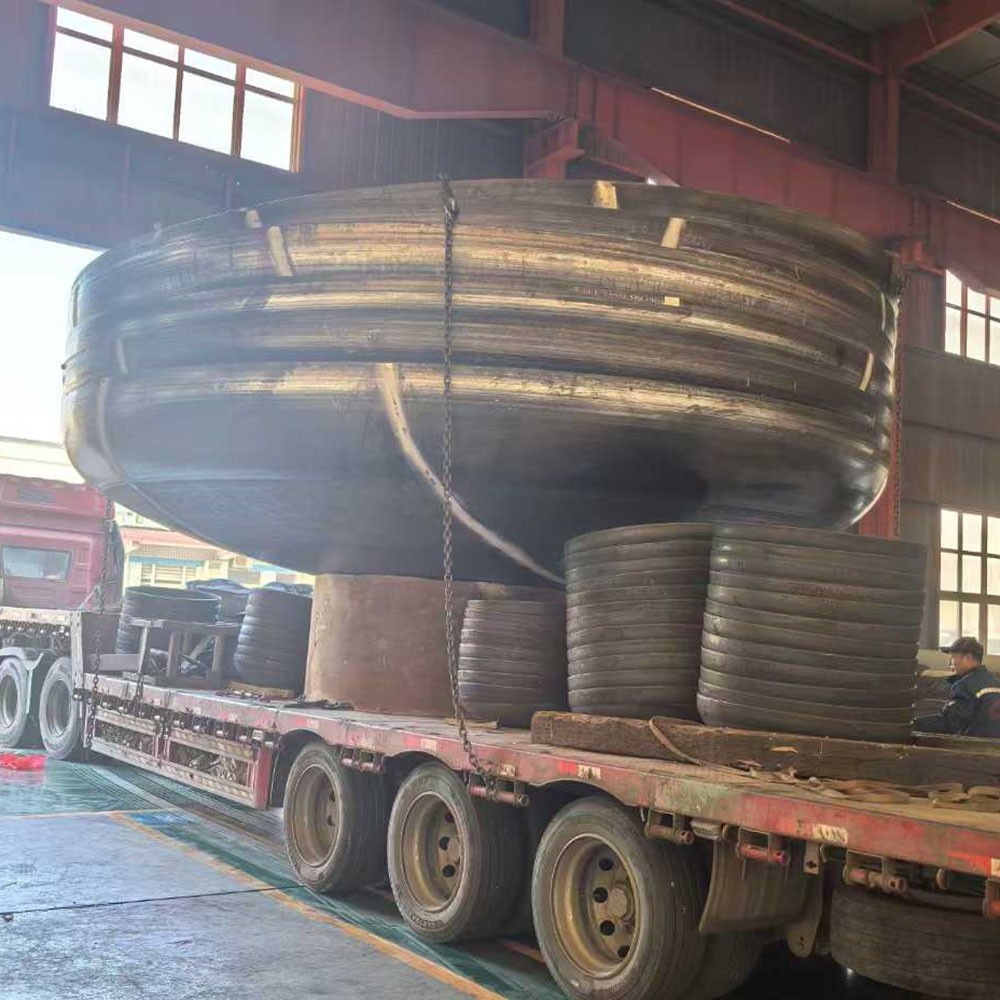

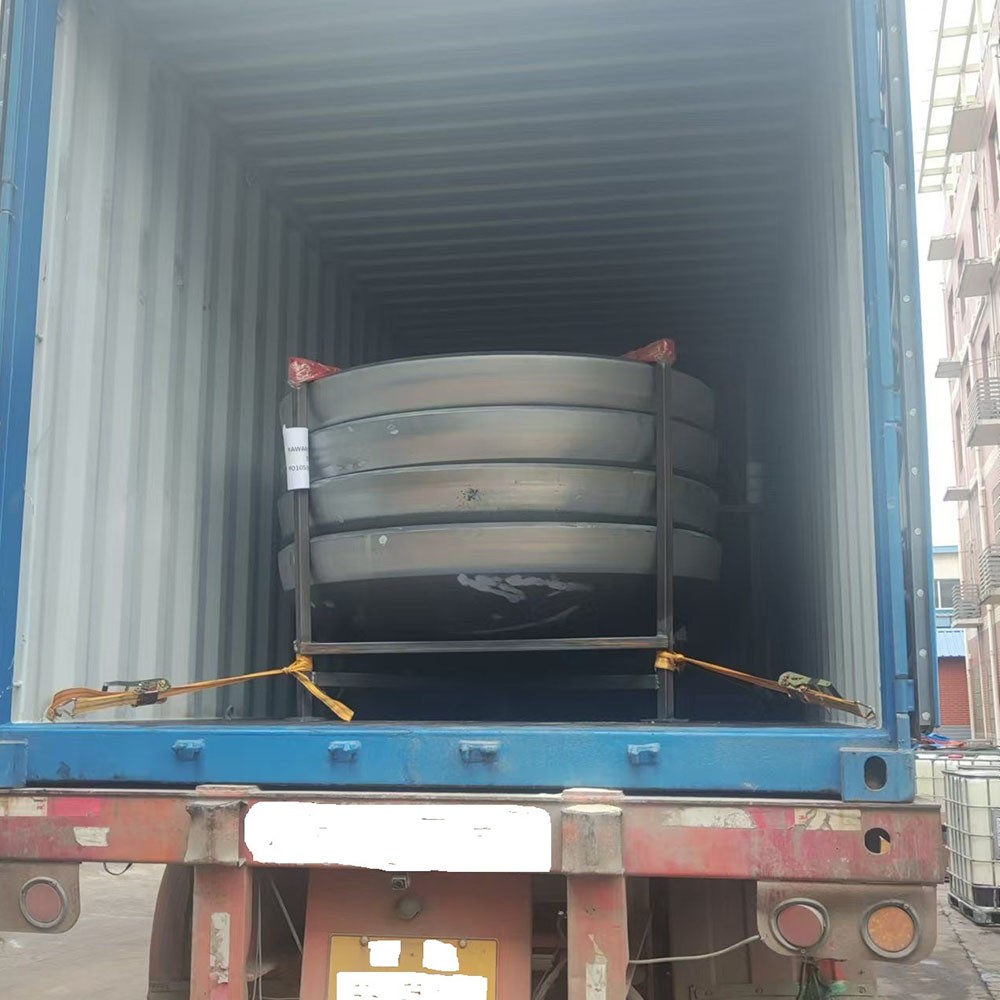

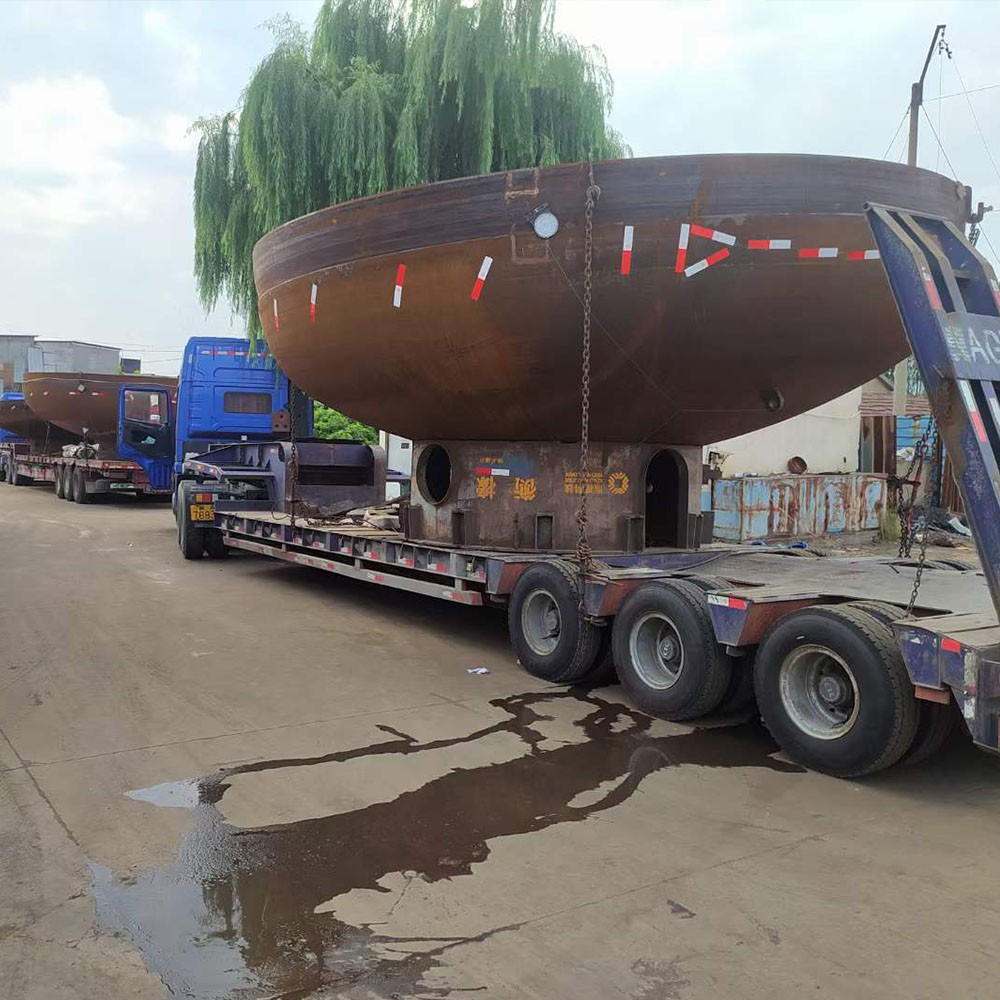

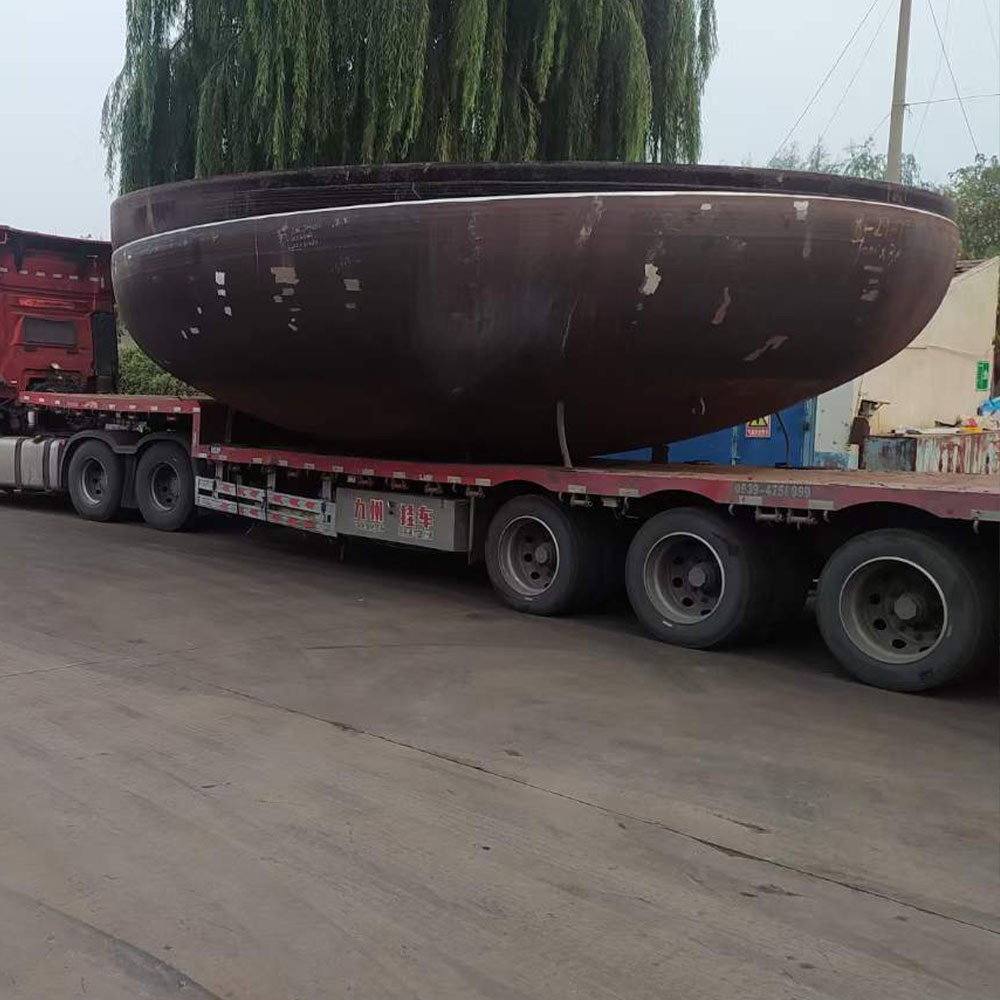

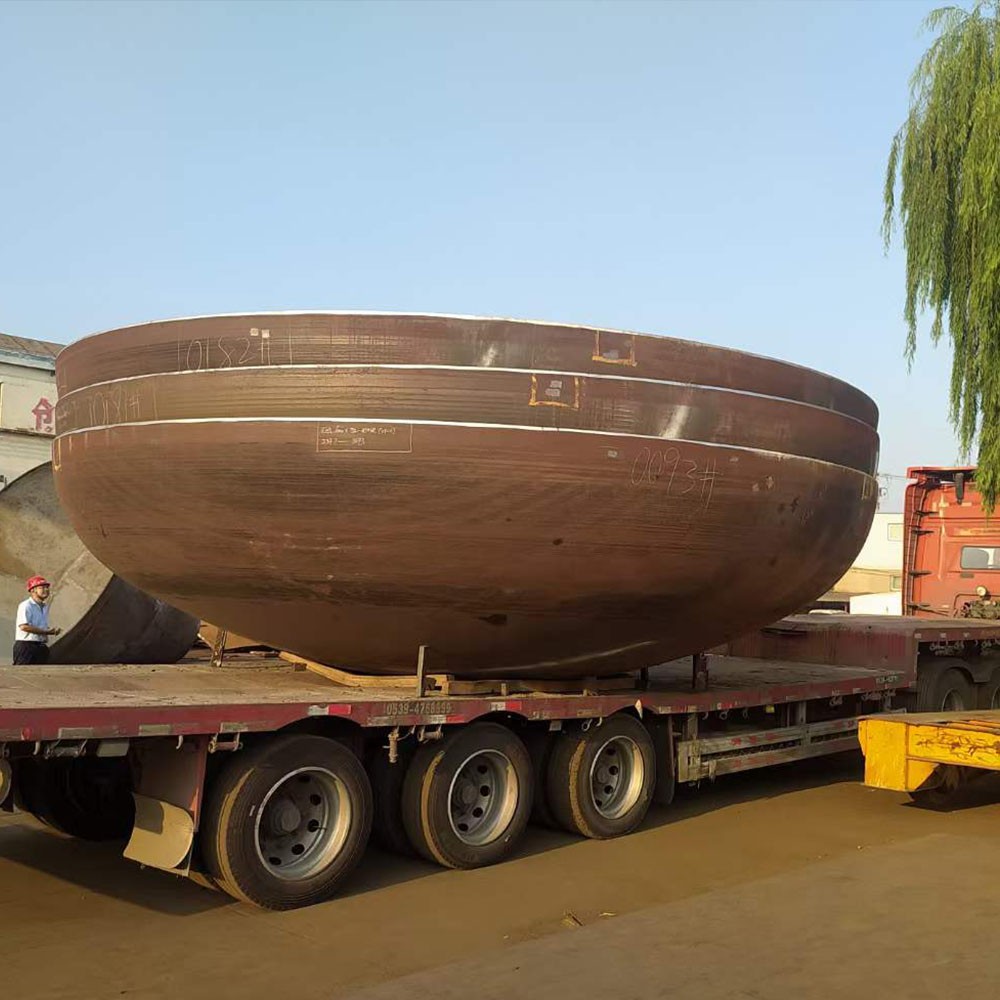

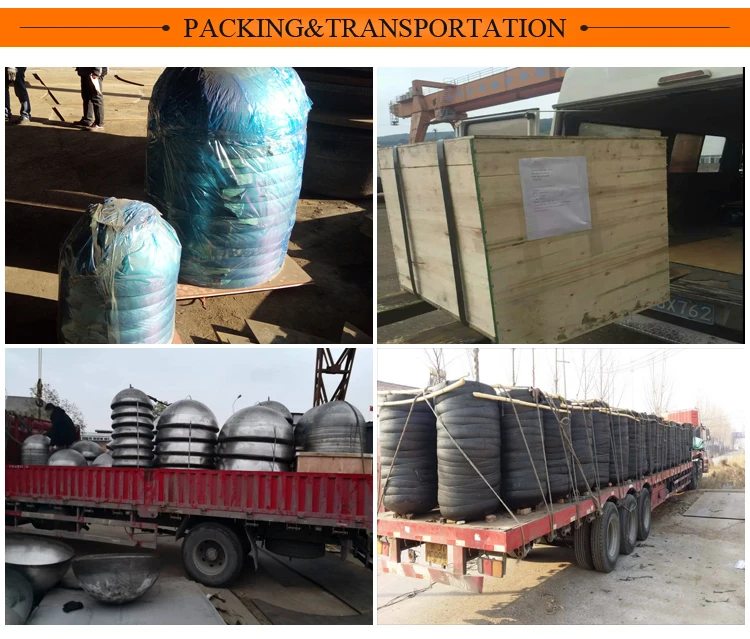

Packing Details  hemispherical head

1 . Pallet packing

2 . Wooden case packing
3 . Steel pallet packing
4 . Nude packing
5 . According to customers' requirement

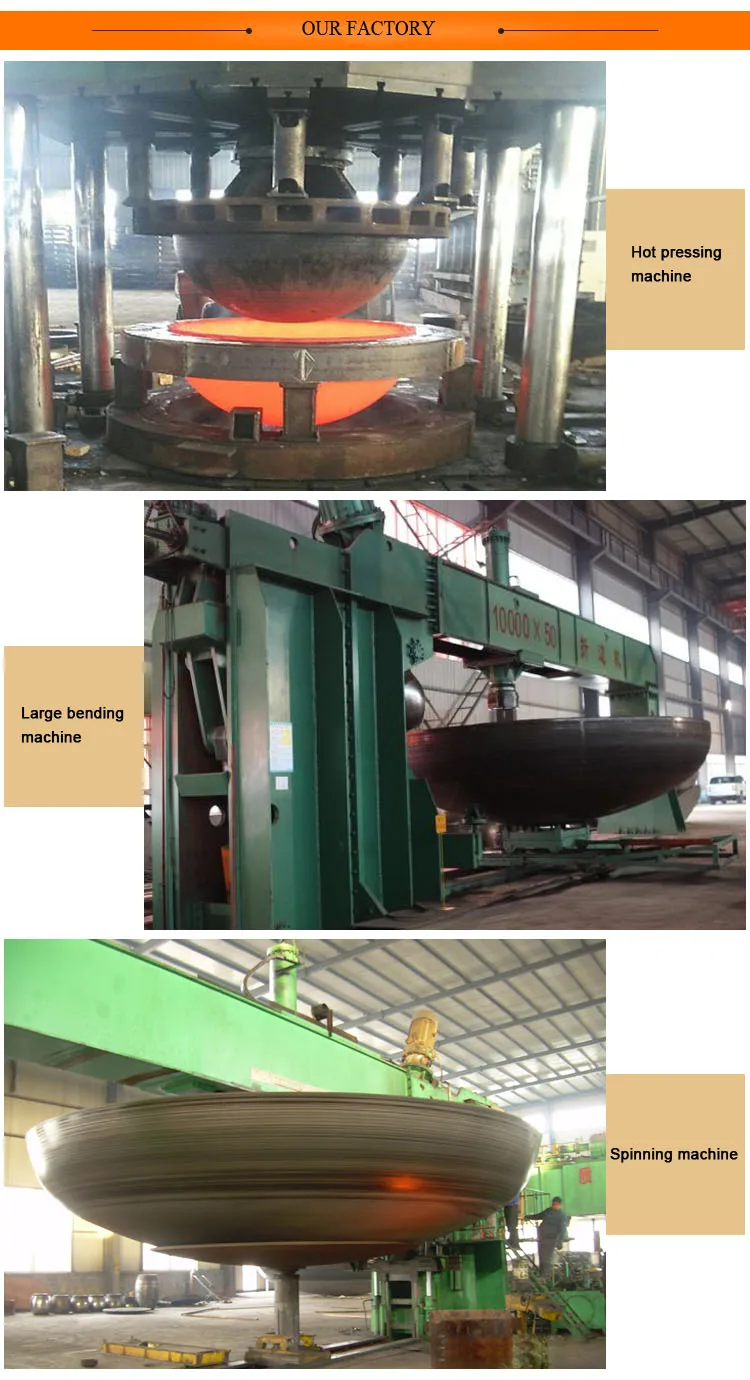

Haipei Industry can produce all types of dished ends heads. They can be manufactured from a number of steel types including pressure vessel and boiler quality, chrome moly and stainless steel. The company also offers 2:1 semi ellipsodial, hemispherical petals, torispherical ends as well as conical knuckled sections.   hemispherical head Our company is a specialized manufacturer of tank head. With over 15 years of engineered driven expertise, it is a recognized leader within the tank head industry in china.With unique head forming, fabrication and heat treating capabilities, we offer a diversified range of products. hemispherical head Head diameters is from 3.5" to 393.7'', and Head thickness is from 0.078" to 11.8''. Pressure vessel heads and tank ends are available in a broad range of sizes, shapes, thicknesses and material specifications.

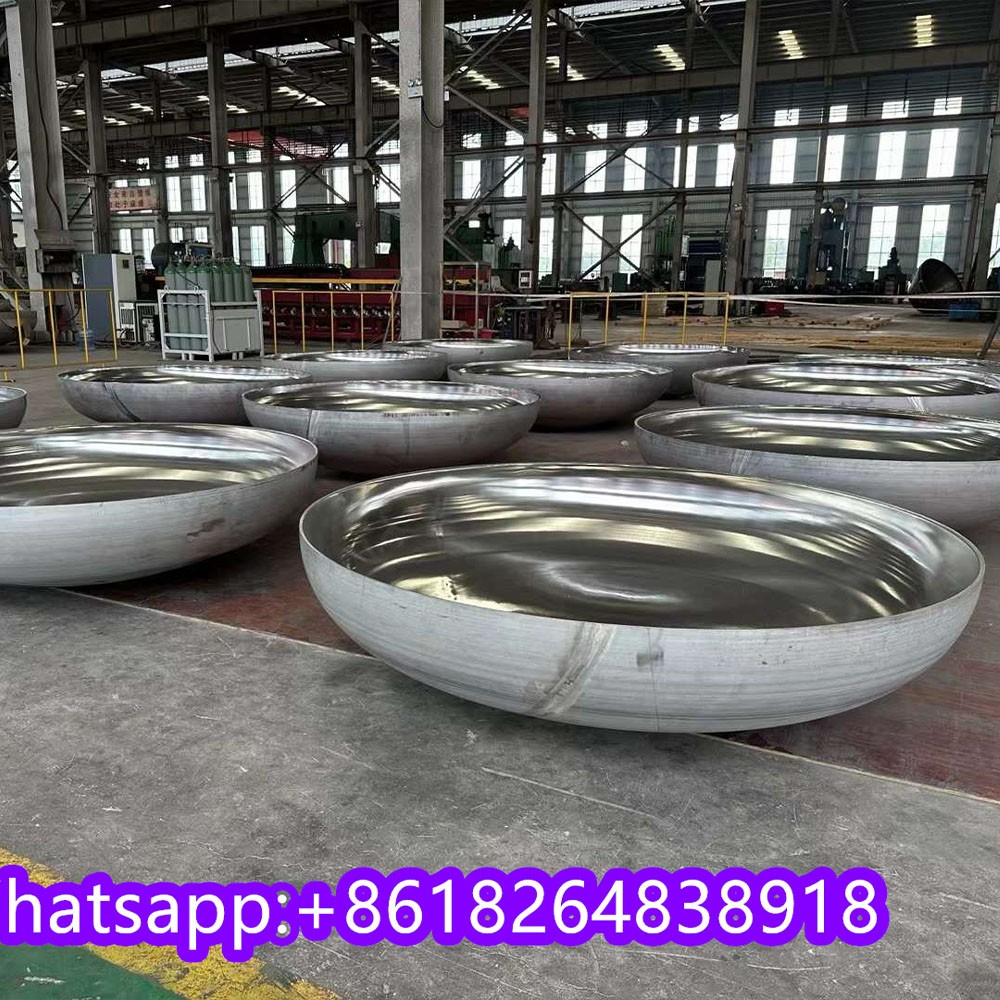

Haipei Industry Stainless Steel 2:1 Semi-elliptical Head Semi-Ellipsoidal Head 2:1  semi-ellipsoidal head (commonly called a 2:1 ellipsoidal head) is a type of end cap for pressure vessels, where the major axis is twice the minor axis. ASME - 2:1 Semi Ellipsoidal Dished Ends - Stainless Steel production of dished heads, flat heads, conical heads, hemispherical heads, reductions Semi Elliptical (SE) head looks like a half ellipse. Also known as 2:1 head. Meaning that the width of the ellipse is twice the depth  2:1 elliptical tank head is fabricated to have a specific shape instead of a particular dish or knuckle radius  Learn about the semi-ellipsoidal (2:1) head: its geometry, standards, applications, and engineering significance in pressure vessels.Semi ellipsoidal head DIN 28013 for slurry tank. Description of semi ellipsoidal head: Sim elliptical head other names of elliptical head, elliptical dished 2:1 Elliptical Heads are ideal for pressure vessels and markets, including chemical, oil & gas, water filtration, air receivers, and more. 2:1 semi-elliptical head is a torispherical head with a crown radius of 0.9D and a knuckle radius of 0.17D. 2:1 Semi-Elliptical Dished End Heads for Pressure Vessels Whatsapp:+8618264838918#dishedhead #dishedend #pressurevessel #ASMEhead #ellipticalhead #ellipsoidalhead #semiellipsoidalends #endcaps

1. The material for steel hemisphere is?   hemispherical head

We can provide carbon steel and stainless steel, such as Q235B, Q345R, 304 and 316L.

2. The package of steel hemisphere is?   hemispherical head

We can provide customized package service, most popular package is plywood pallet, other packages, like steel pallet, steel frame, plywood box are all accepted.

3. The MOQ of the steel hemisphere is?

Our MOQ is 1 piece, delivered by express.   hemispherical head

4. Can you produce the steel hemisphere as our requirement?   hemispherical head

If you have drawings, we will be entirely in accordance with production drawings.

If you do not have the drawing, you can tell me the product data which necessary to order heads.
