Haipei Industry 2:1 Ellipsodial Head ASME Ellipsoidal Head 2:1 DIN 28013 - 副本

Haipei Industry 2:1 Ellipsodial Head ASME Ellipsoidal Head 2:1 DIN 28013

Product Description

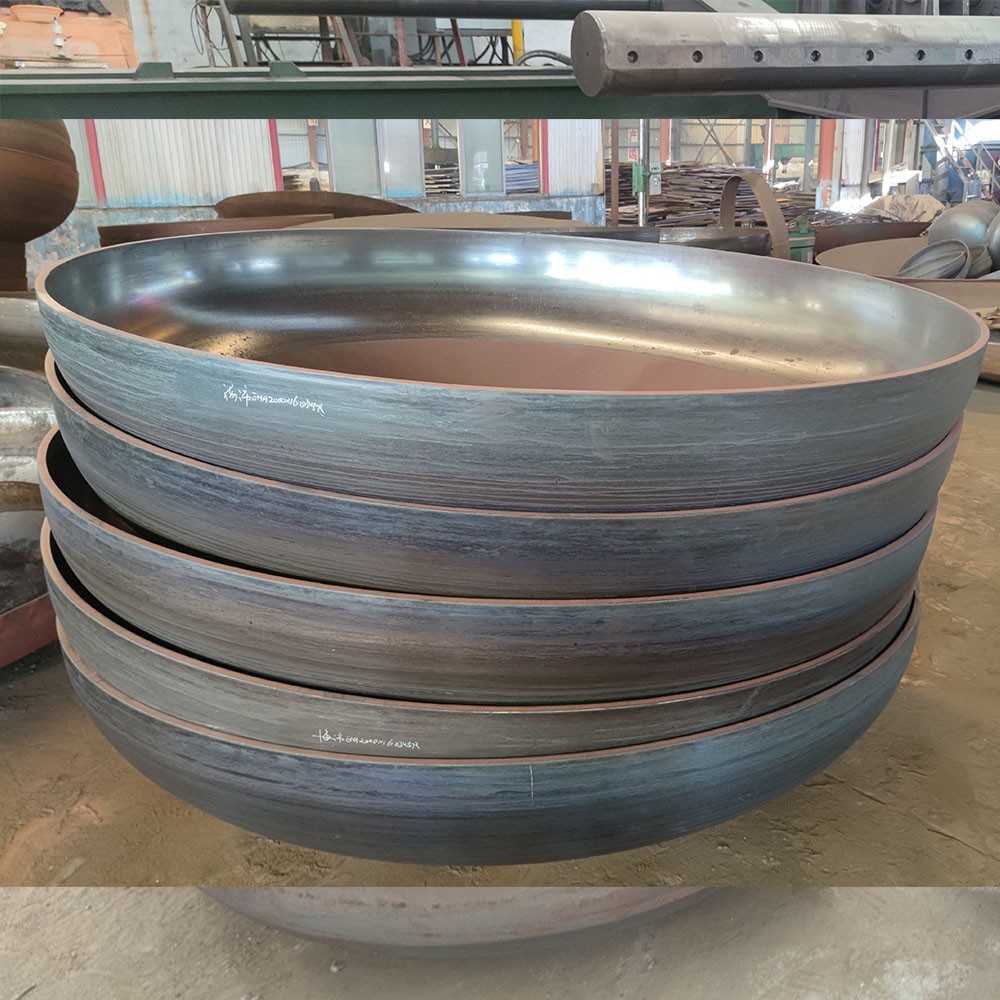

Haipei Industry 2:1 Ellipsodial Head ASME Ellipsoidal Head 2:1 DIN 28013

Hot Pressed vs Cold Pressed Dished Ends Cold pressing involves forming the dished ends at room temperature, using significant force to shape the material. This process is typically Dished and Flanged Ends core has been the manufacture of cold formed Dished & Flanged ends. Our customers include: Manufacturers of pressure vessels. The dished head is created by firstly being cold pressed into a spherical cap shape and then flanged which creates the knuckle radius and straight flange.Standard flanged and dished heads are used for storage tanks in situations where ASME code requirements aren't applicable.

Haipei Industry Dished Head dish head for pressure vessel The tank heads may be formed from cold pressed or formed Dished End has stresses formed into it and depending on the material it may need to be stress relieved once finished. Cold Pressed Dished Ends Cold pressing involves forming the dished ends at room temperature, using significant force to shape the material. This process is typically faster and more cost-effective than hot pressing, making it a popular choice for many applications.

Pressure Vessel Heads

Pressure vessels are used for a variety of purposes throughout the oil, gas and petrochemical industry, and material considerations are based around the gas or liquid being stored.

Pressure vessel heads and dished ends are essentially the same – the end caps of a pressure vessel tank or an industrial boiler. They are supplied with a flanged edge to make it easier for the fabricator to weld the head to the main body of the tank.

Torispherical Dished Ends

Torispherical dished ends are one of the many types of vessel ends which Masteel can produce, and they can be manufactured from a number of steel types including pressure vessel, boiler quality, chrome moly and stainless.

10% torispherical dished ends are the most popularwhere the knuckle radius represents 10% of the diameter of the cylinder. Torispherical head is used for all kinds of tanks and pressure vessel, which is made with stainless steel, carbon steel and alloy steel,etc. The torispherical dished heads are cold pressed or hot-formed, seamless and stress treated, Widely used in industrial storage or pressure vessels such as storage tanks, heat exchangers, towers, reactors, boilers and separations equipment. Hiapei Industry Metal product range: elliptical head, torispherical head, steel hemisphere and conical head, fire bowls, etc.

Semi–Ellipsoidal Dished Ends

2:1 Semi-Ellipsoidal dished heads are deeper and stronger than the more popular torispherical dished heads.

The greater depth results in the head being more difficult to form, and this makes them more expensive to manufacture. However, the cost is offset by a potential reduction in the specified thickness due to the dished head having greater overall strength and resistance to pressure.

Our pressure vessel, boiler quality, and HIC tested steels are available from stock

Much of these steels are already tested to stringent standards which means that in most cases, the steel is already available for supply

As we are already part of the mill stock production programs, if we don’t have the steel in stock, we can certainly get it quicker to you than if you were to source it elsewhere

We specialise in HIC resistant steel which is ideal for sour gas applications

Production Process of Heads:

Haipei Industry 2:1 Ellipsodial Head ASME Ellipsoidal Head 2:1 DIN 28013

Picking steel---Cutting---Welding---Heating---Spinning---Stamping---Trimming---Defect detection---QC---Warehousing---Transporttation

Company Information

Haipei Industry is a specialized manufacturer of tank head. With over 30 years of engineered driven expertise ,it is a recognized leader within the tank head industry in china.With unique head forming, fabrication and heat treating capabilities, we offer a diversified range of products. Head diameters is from 3.5" to 393.7'', and Head thickness is from 0.078" to 11.8''. Pressure vessel heads and tank ends are available in a broad range of sizes, shapes, thicknesses and material specifications.

The main products of the company are: shell plate, elliptical head,torispherical heads,spherical dished heads, flat heads, spherical head, expansion joint, corrugated furnace and non-standard parts, and all kinds of stock heads are available for customers. The products are sold to more than 20 provinces and cities and regions in China and exported to foreign countries.

Advantages

 ♦ Small order advantage, flexibly in dealing with orders;

♦ Quality: Strict control of raw materials and the production process;

♦ Advanced technology,best quality,customer satisfaction,reputation first,good after-service;

♦No cracks , delamination, inclusion ,and other defects;

Our Services

1.No cracks,delamination, inclusion ,and other defects;

2.The warranty time is 6 months,except the wearing parts;

3.We provide the best service based on professional and sincerely attitude.

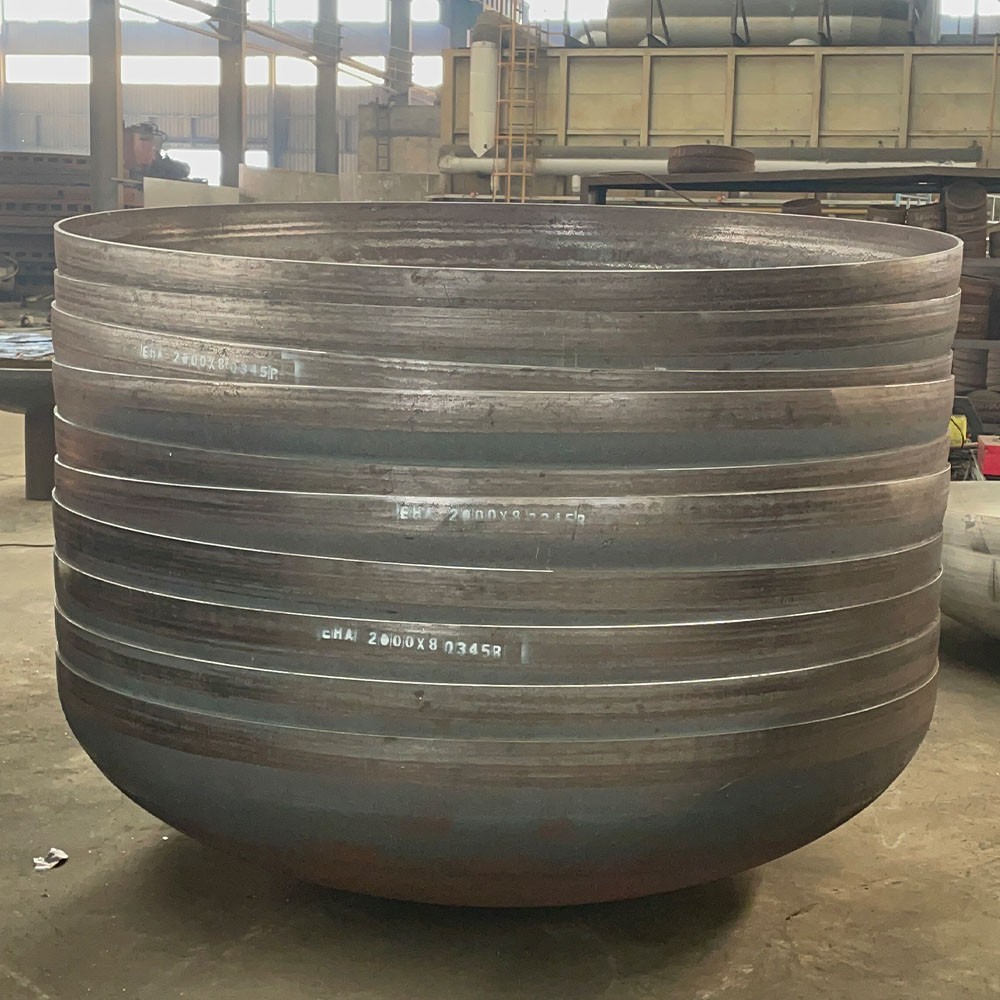

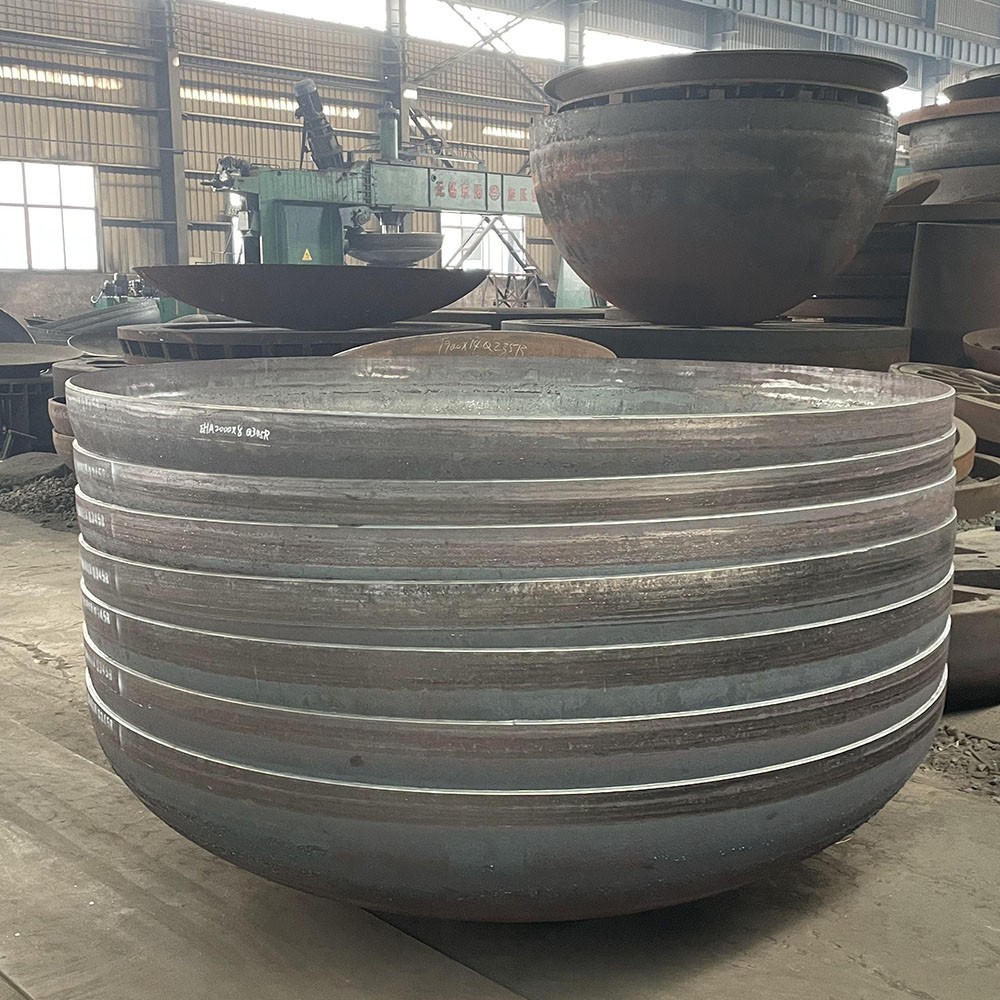

Product Pictures

Haipei Industry is a professional workshop making all kinds of Pressure Vessel Head, such as: hemispherical head,ellipsoidal head,torispherical head, dished head,etc Factory Price ASME Stainless Steel Dish Head Elliptical Steel Head for Storage Tank We offer a huge range of Pressure Vessel Head, such as:hemispherical head, ellipsoidal head, torispherical head.dished head, Tank Head ASME SA516 GR70N Gr.60 Gr65 Ellipsoidal Dish End Carbon Steel Elliptical Tank Heads ASME U Stamp Pressure Vessel Heads Ellipsoidal Dished Heads Stainless Steel 316L Dished Ends

Haipei Industry Carbon Steel Vessel Heads ASME Code Carbon Steel Heads Vessel heads We form stainless steel, high alloy and carbon steel vessel heads built to specification. We Maintain a large inventory of ASME Carbon Steel Vessel Heads ASME Code Pressure Vessels Heads Tanks Heads largest Cold-Form Head Manufacturer Segmented Tank Heads Tank & Vessel Heads steel tank heads ASME Flanged & Dished Head  Asme 2:1 Elliptical Dished Head ASME Flanged and Dished Heads have flatter heads than 2:1 elliptical heads, which ranks them an excellent choice for a mixing tank solution

Whatsapp:008618264838918 #pressurevessel #ASMEhead #ellipticalhead #ellipsoidalhead #torisphericalhead #dishhead #dishend #pressurevessel #ASMEhead #ellipticalhead #ellipsoidalhead

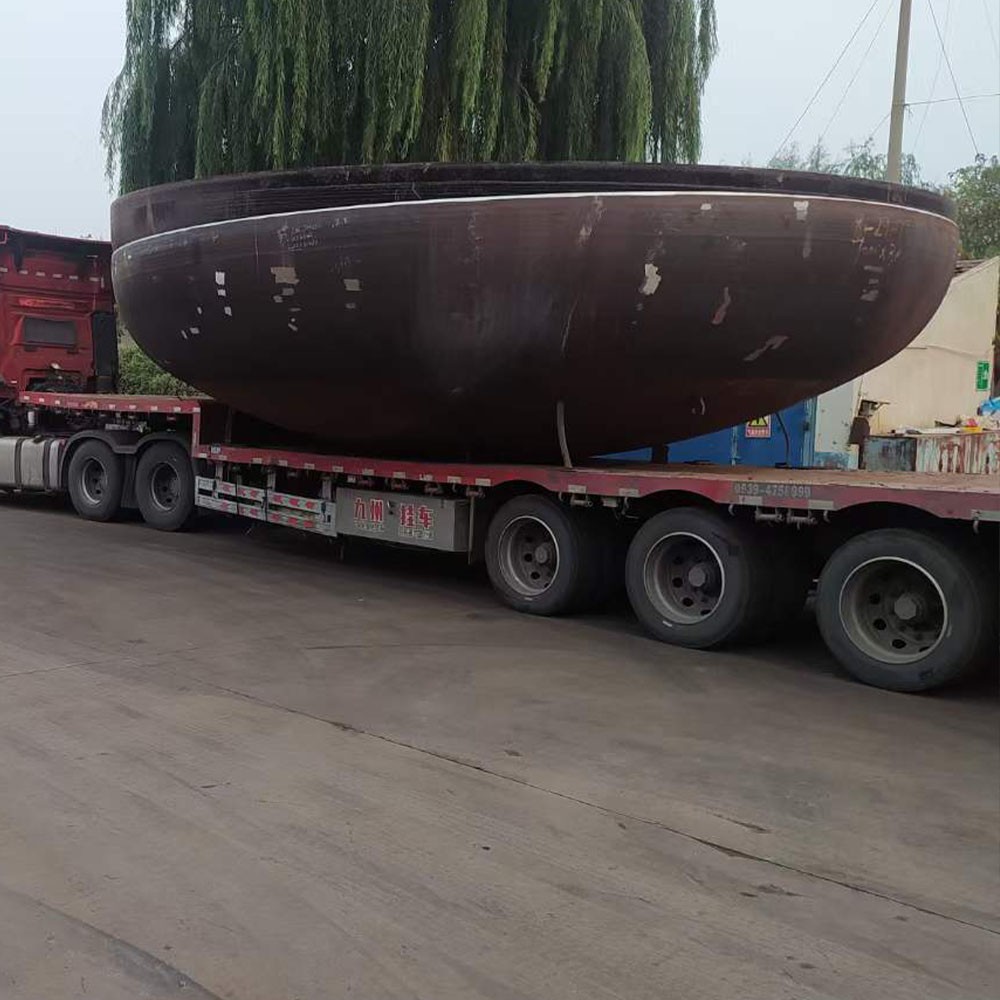

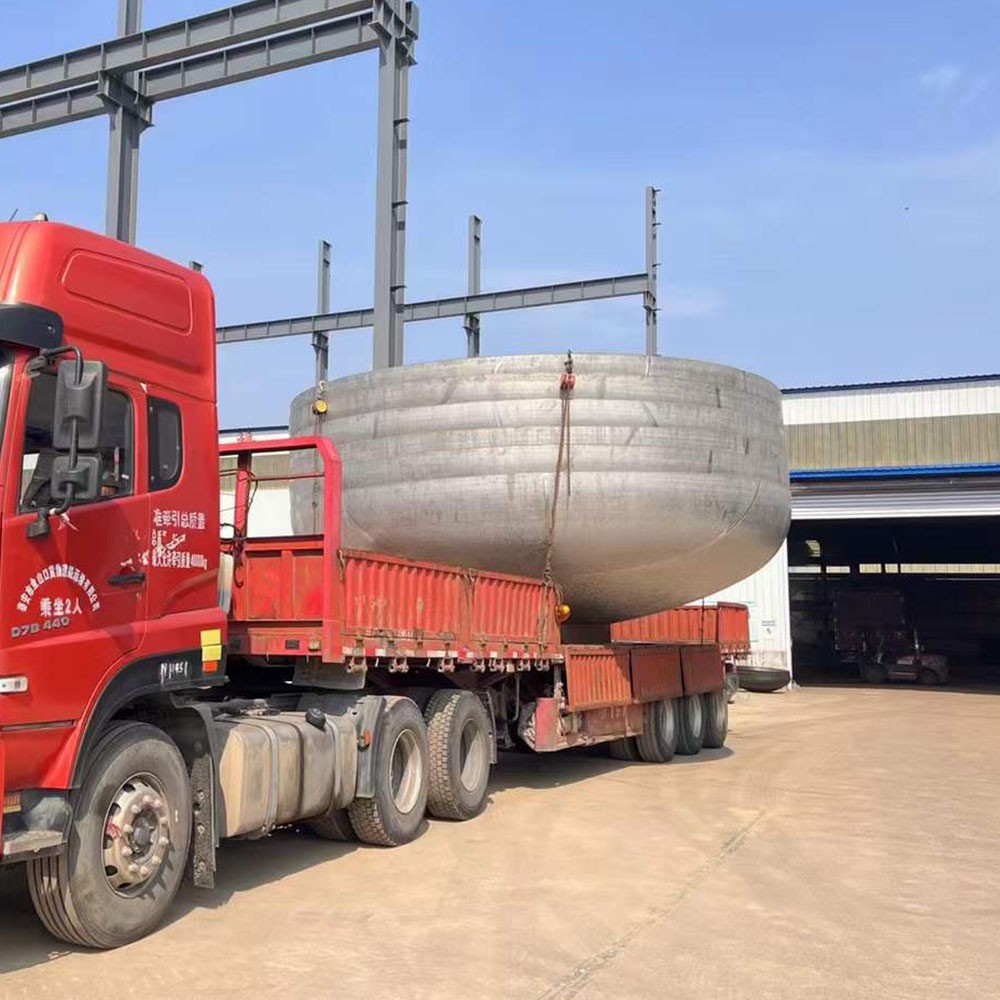

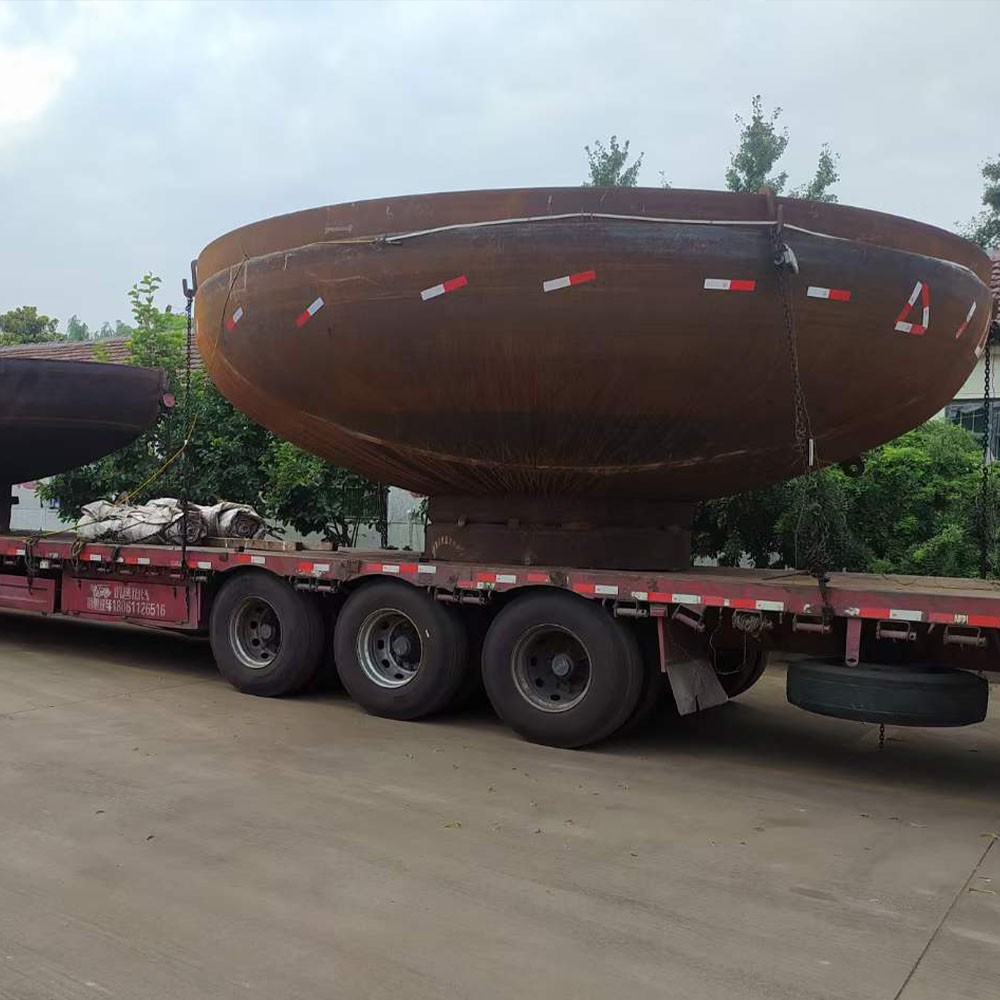

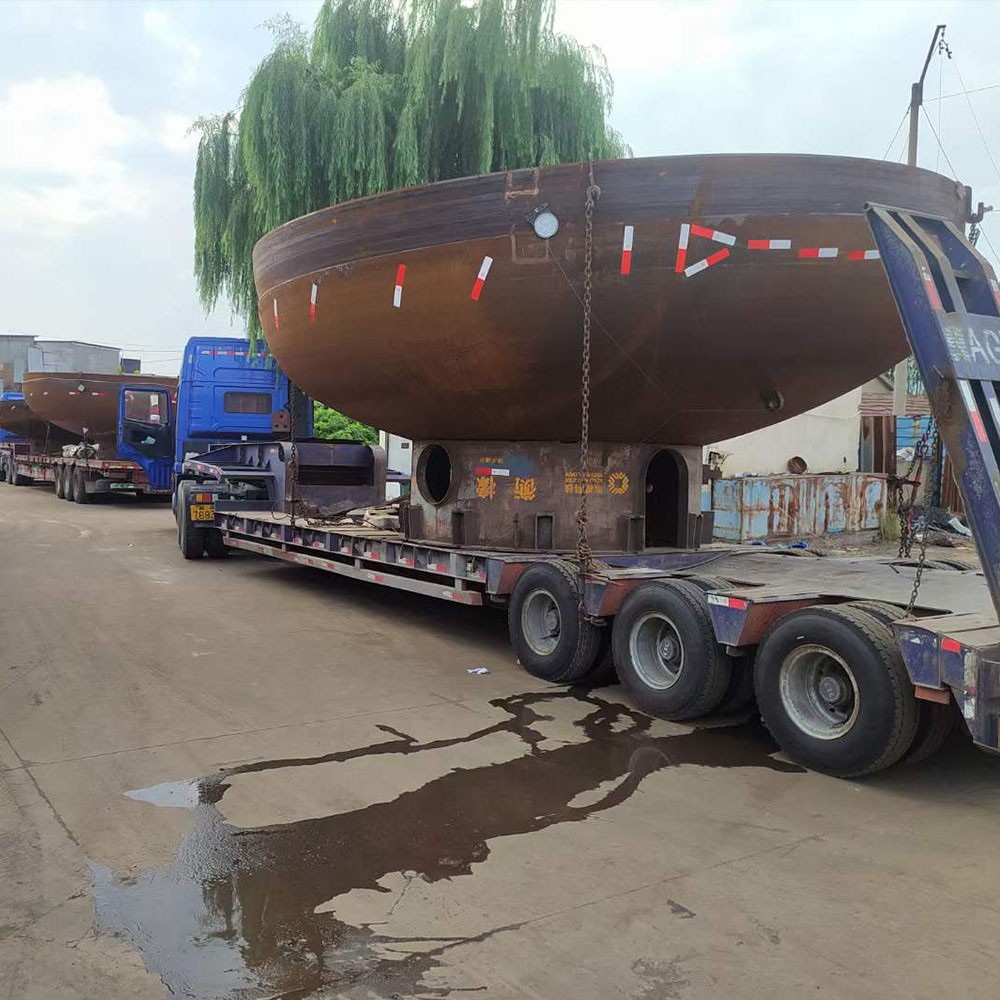

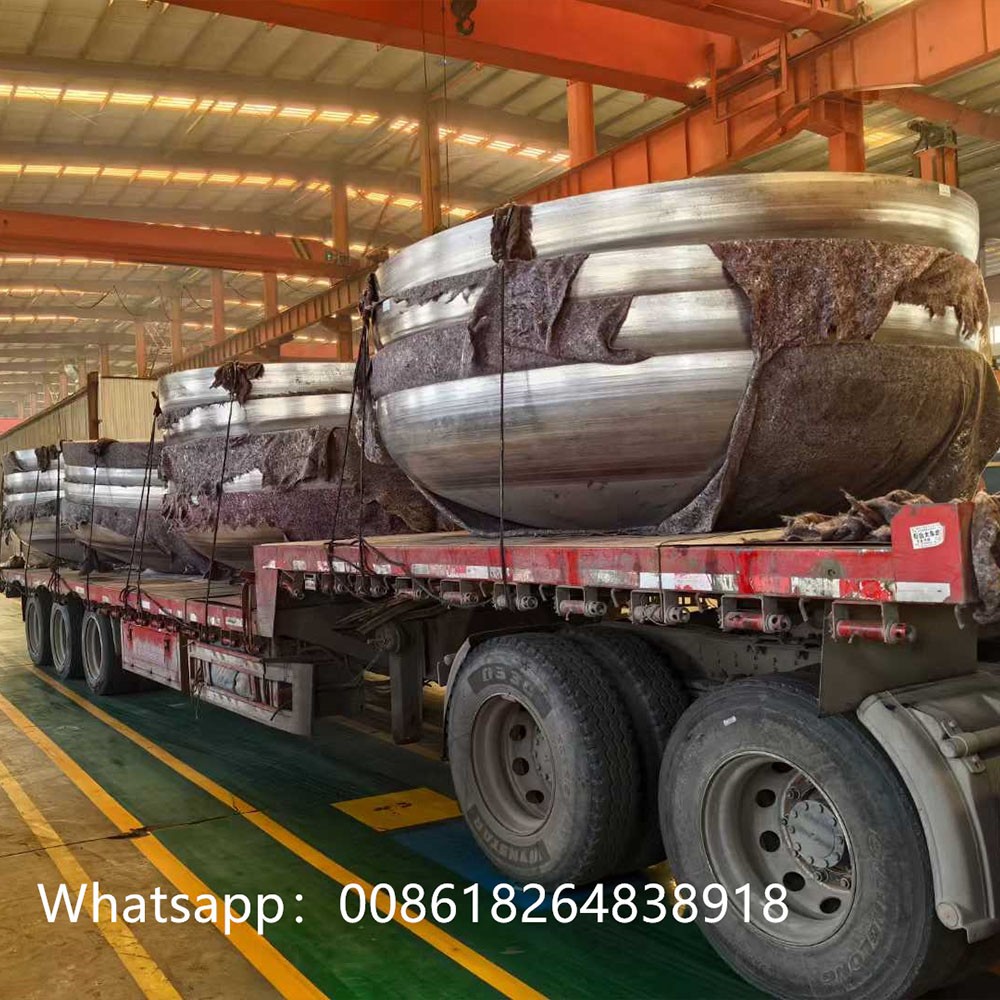

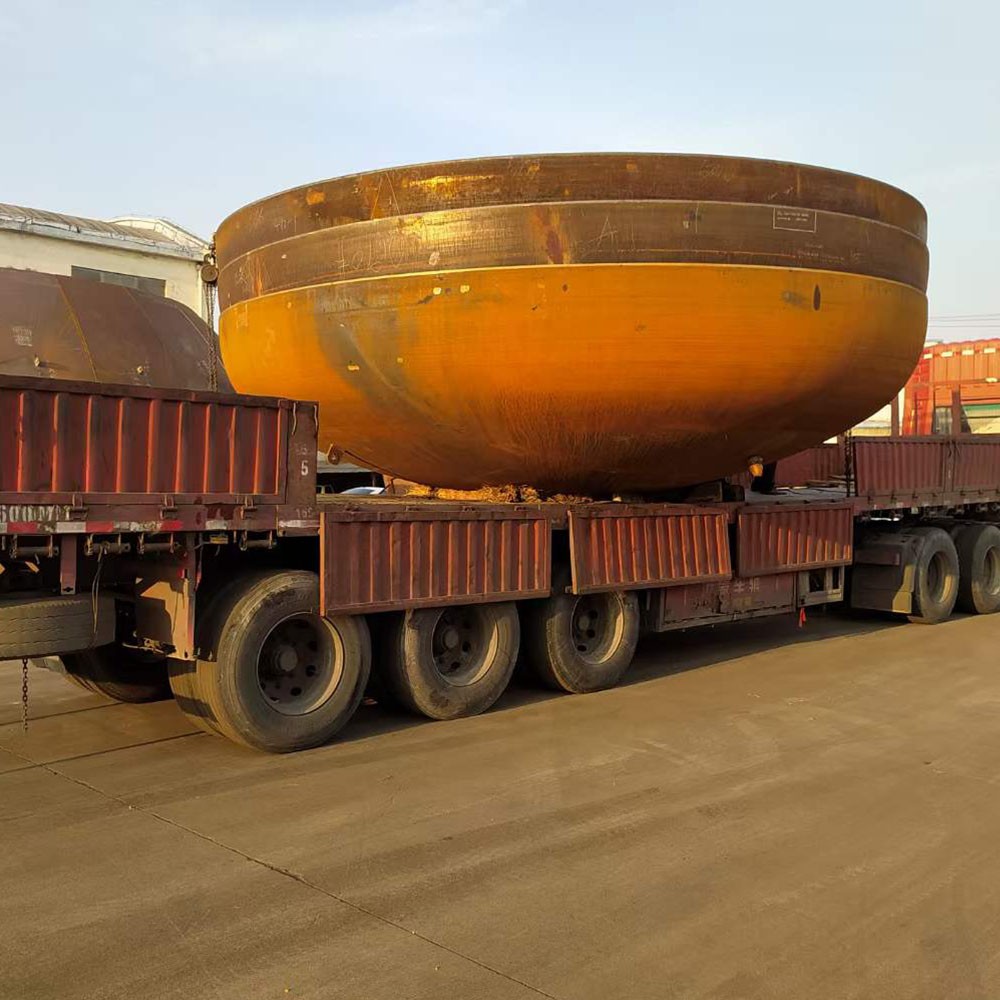

Packaging & Shipping

Haipei Industry 2:1 Ellipsodial Head ASME Ellipsoidal Head 2:1 DIN 28013

1, Shipment by bulk OD more then 5000mm

2, GP Containers for OD within 2200mm
3, FR Container OD within 4000mm
4, Iron Cage and wooden pallets accordingly.

Contact us

Skype:frieda8368
Whatsapp/Weichat:86-18264838918
Email:[email protected]

FAQ

Q: What’s the information should I provide when inquiry?

A: Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.

Q: what are surface treatment of the product?

A:Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.

Q: How do you ensure the quality of products?

A: Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.

Q: Can you help us matching related products?

A: Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
