Product Description

1. Grade: Carbon steel, Stainless steel, Aluminum,Titanium,etcAccording to customers requirement.

2. Size: 89mm--10000mm

3. Standard: ANSI, ASME ,MSS, API, DIN, JIS

4. Certification: ISO9001 ,ISO14001,OHSAS18001

5.Name: Bottom Tank Head Price,Steel Dished End Elliptical Head Hemispherical Head

Producing-Process

Haipei Industry Storage Tank Elliptical Dish Head

Picking steel---Cutting---Welding---Heating---Spinning---Stamping---Trimming---Defect detection---QC---Warehousing---Transportation

Product Show

Hemispherical Head (also called hemispherical tank heads or hemispherical dish ends) is widely applied to make pressure tanks to storage liquids and gasses. Our asme hemispherical head is often made with carbon steel, stainless steel, austenitic and non ferritic metals that can be cold worked. Hemispherical is the ideal shape for development of hemispherical dish end, because the pressure in the vessel is divided equally across the surface of the head. The radius (Ri) of the head equals the radius of the cylindrical part of the vessel. This type of hemispherical tank heads or hemispherical dish ends are made in most popular sizes and thicknesses.

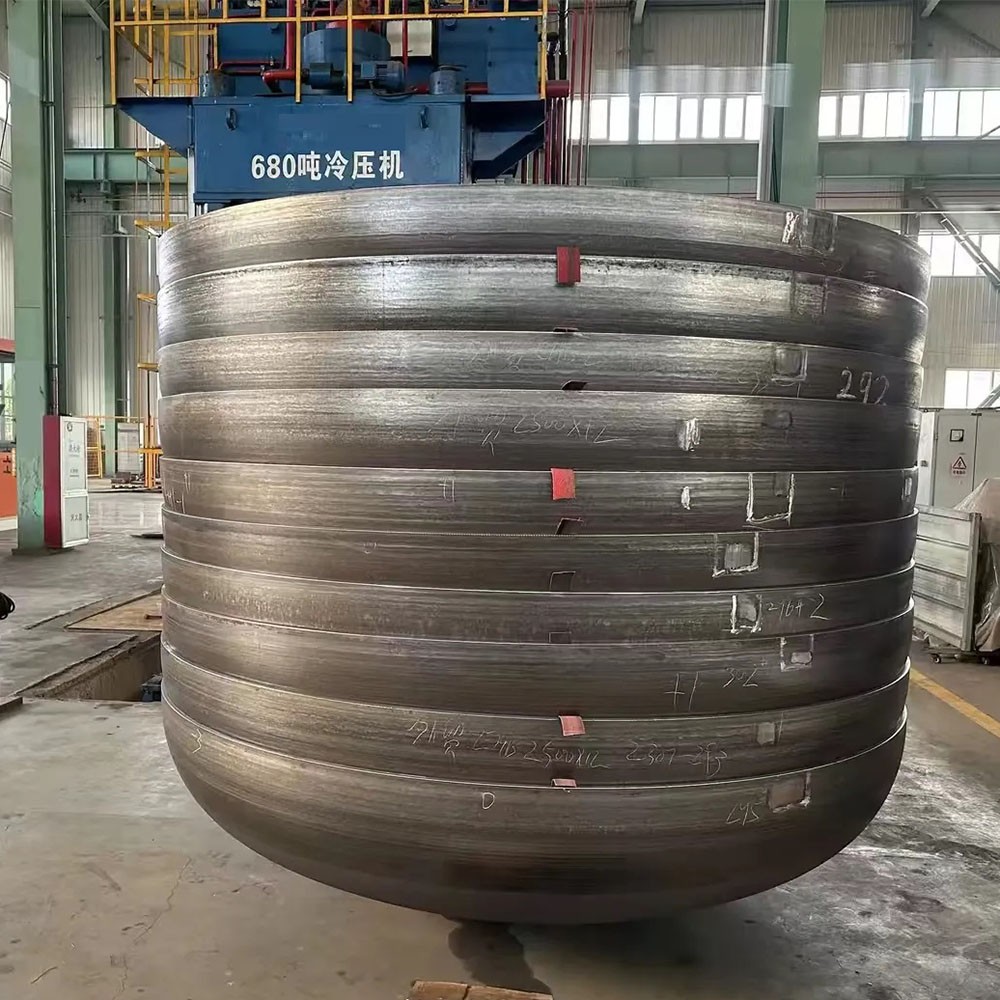

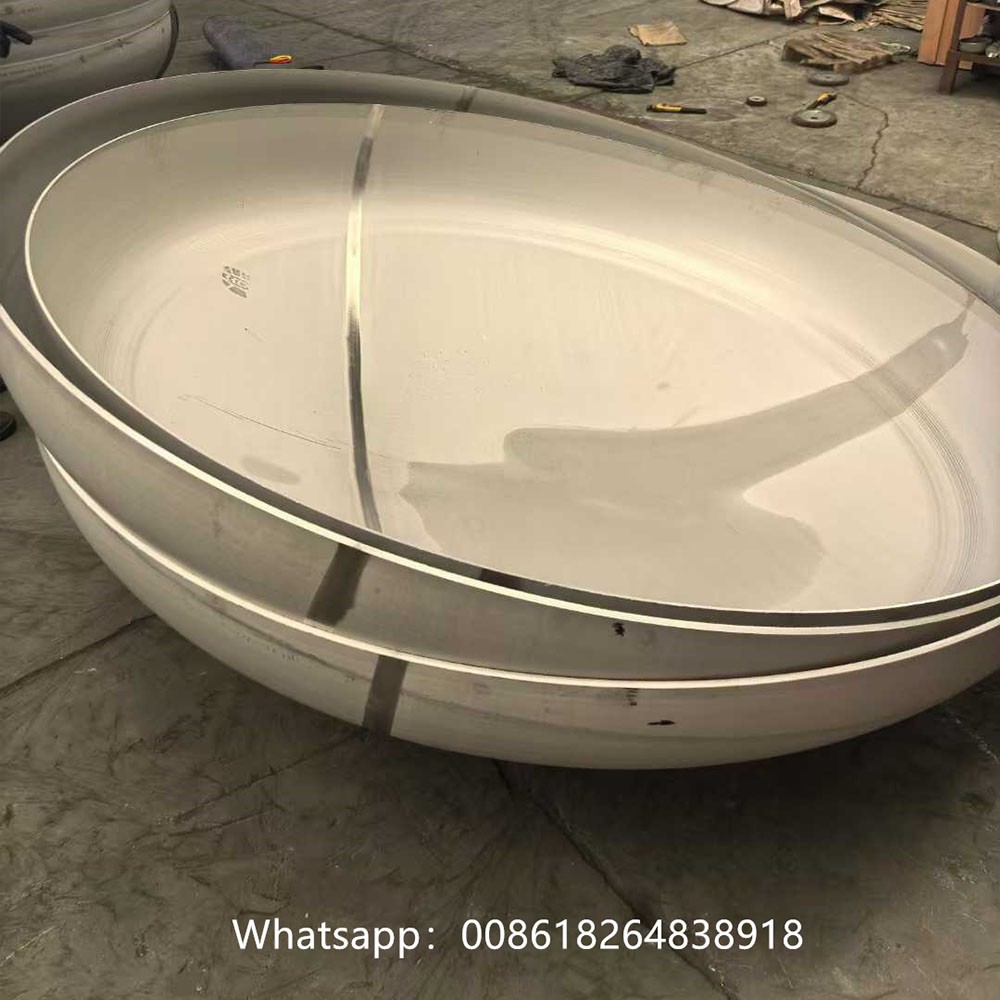

Ellipsoidal head (also called elliptical head or elliptical dish end) is usually made with Carbon steel, stainless steel, austenitic and non ferritic metals that can be cold worked. The shape of this ellipsoidal head is more economical, because the height of the head is just a fraction of the diameter. The elliptical dish end radius varies between the major and minor axis usually with the ratio is 2:1. The elliptical tank head is the economical solution for medium pressure tanks due to the reduced metal thickness requirement.

We can produce up to 8,000 mm diameter asme torispherical dish end depending upon thickness of material and wall thickness up to 30 mm depending upon material and diameter. custom forms and dimensions are also available.

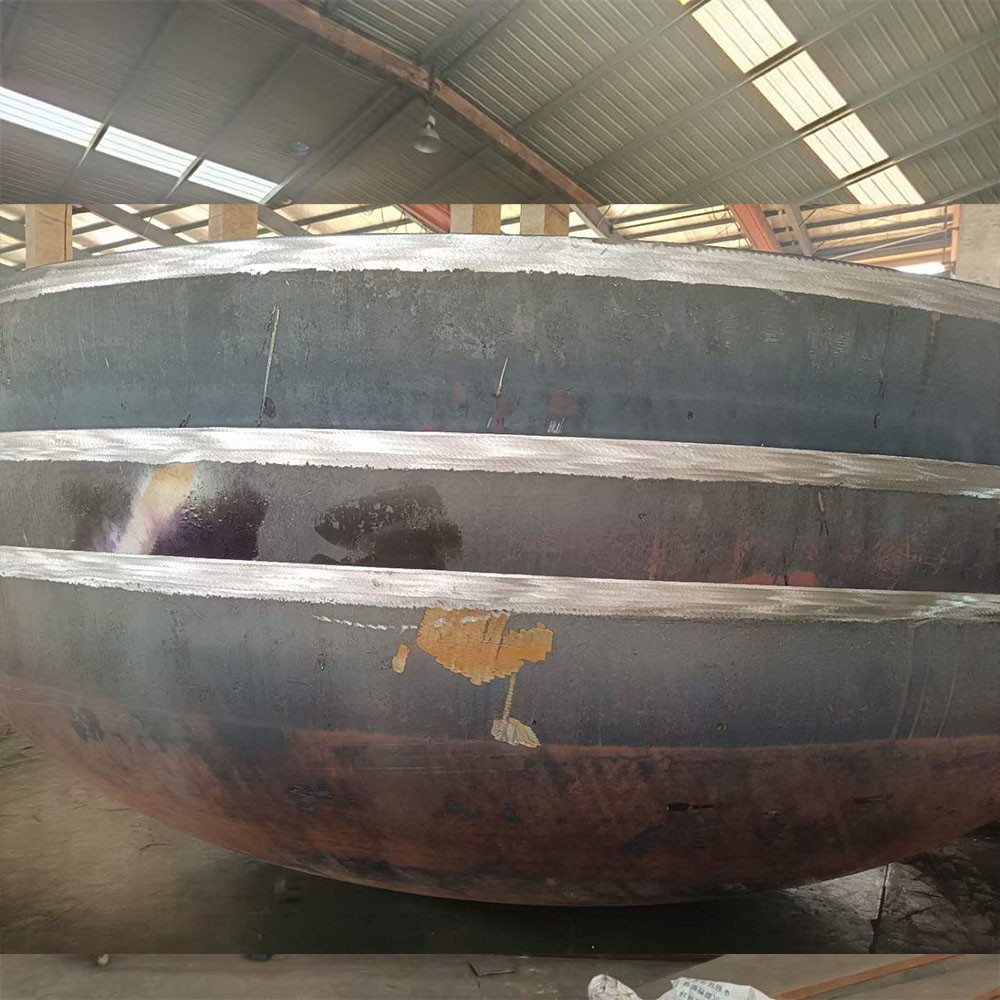

Torispherical Head (also called torispherical dish end or torispherical ends) is widely applied for pressure tanks to storage liquids and gasses. The torispherical head consists of a spherical surface, a cylindrical edge of a certain height, and a transition section connecting the above two parts with a radius of curvature smaller than the radius of the sphere. Our asme torispherical head can be made with carbon steel, stainless steel, austenitic and non ferritic metals that can be cold worked. The stress distribution of torispherical dish head is not as uniform as elliptical head, but the manufacturing processing of the torispherical head is easier. However, torispherical dish end is the better option when the elliptical head of the mold processing is difficult. We can fabricate torispherical ends in most popular sizes and thicknesses.

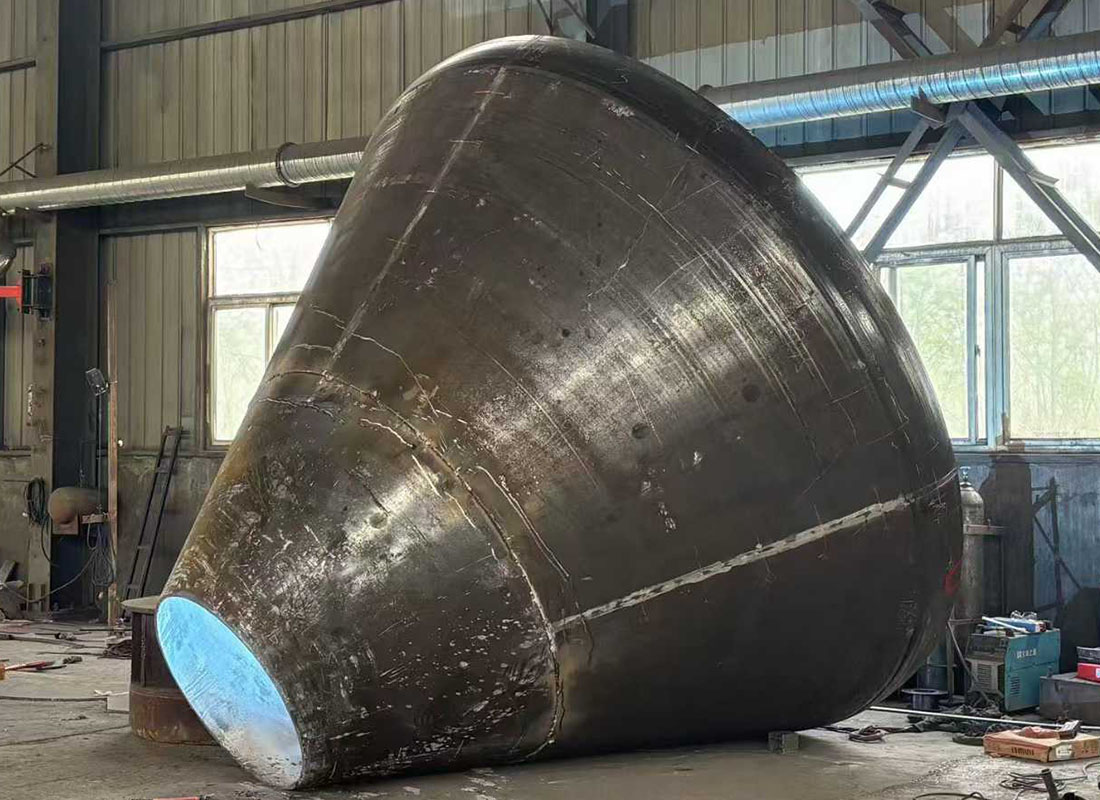

Conical Head (also called the tapered tank head) is widely used for vessel bottom or cover plates. With the shape of concentric cone, the toriconical head consists of a large end cone and a small end. Cone and large end of the connection, due to geometric discontinuity, the radius of curvature of the mutation, so there will be a large lateral thrust, causing a large edge stress, prone to bending, it is necessary to strengthen.the tapered head The cone head type is divided into CHA (30), CHA (45), CHA (60) by half angle.

Stainless Steel Elliptical Head Dish End Forged Welded for Storage Tank elliptical dish head is a dome-shaped end cap welded onto the top and bottom of cylindrical industrial storage tanks and pressure vessels 2:1 Elliptical Flanged and Dished Tank Head 2:1 elliptical tank head is fabricated to have a certain shape instead of a particular dish radius or knuckle radius.Compare tank head types: 2:1 elliptical, ASME F&D, and flat heads. Learn benefits, pressure ratings, and cost differences for your tank application.We are a China supplier for manufacturing large, thin-walled heads and dished ends. Offering customizable tank heads of to meet the unique needs of our customers ‎Ellipsoidal Heads · ‎Various Types Of Dish Heads · ‎Dish Head Forging · ‎Spherical Tank Elliptical Tank Heads | ASME-Compliant Tank Heads ASME-compliant tank heads for pressure vessels, industrial tanks, and fabricated process systems.

‎Flanged-Only Tank Heads · ‎Large-Diameter Forming · ‎High Crown Tank Heads  semi-elliptical head or elliptical head features a familiar cupped profile where the dish height is a fraction of the diameter Elliptical Head Dished Head Pressure Vessel Tank Heads Tank Bottom End High-Performance Ellipsoidal Head(Elliptical Dish Ends)

Whatsapp:+8618264838918 [email protected] Haipei Industry Storage Tank Elliptical Dish Head high quality Elliptical Dish Head & Hemispherical Tank Heads Forming Of Ellipsoidal 2:1 Cap , Ellipsoidal Dish Heads 2:1 7000mm Diameter Carbon Steel Segmented Tank Head For Boilers And Heat Exchangers Discover the 7000mm Diameter Carbon Steel Segmented Tank Head, designed for boilers and heat exchangers. This crown and petal head enhances strength, stability, and reduces weight, with a service life exceeding 20 years. Available in various sizes and segmented styles, it offers excellent weldability and high-pressure resistance.Discover the high-quality Ellipsoidal 2:1 Cap and Dish Heads from Haipei Industry Perfect for chemical, petroleum, and other industries, these heads are available in stainless steel, carbon steel, and more. Customized sizes and international certifications ensure reliability and performance. Ellipsoidal Dished Tank Head Forming Discover the precision and quality of Custom Carbon Steel 2:1 Dished Heads, manufactured to meet ASME/PED standards. Ideal for storage tanks, reactors, and heat exchangers, these Elliptical Heads ensure durability and high performance in industrial applications. 6400mm Diameter sa516 gr70 Hemispherical Head 20mm Thick Discover the 6400mm Diameter SA516 GR70 Hemispherical Head with a 20mm thickness, designed for superior strength and efficiency in pressure vessels. Ideal for pharmaceutical, cosmetic, and food industries, this head ensures smooth mixing and optimal drainage.

Feature

1.Hard Materials Temperature and pressure resistance, corrosion resistance

2.Strong resistance to pressure Made of high-quality steel, strong pressure resistance

3.Long use time Not easy to rust, long use time, suitable for a variety of working environments

4.Stable chassis Standard thickness, good processing performance

5.Various specifications Various types of tank heads can be customized according to customer requirements

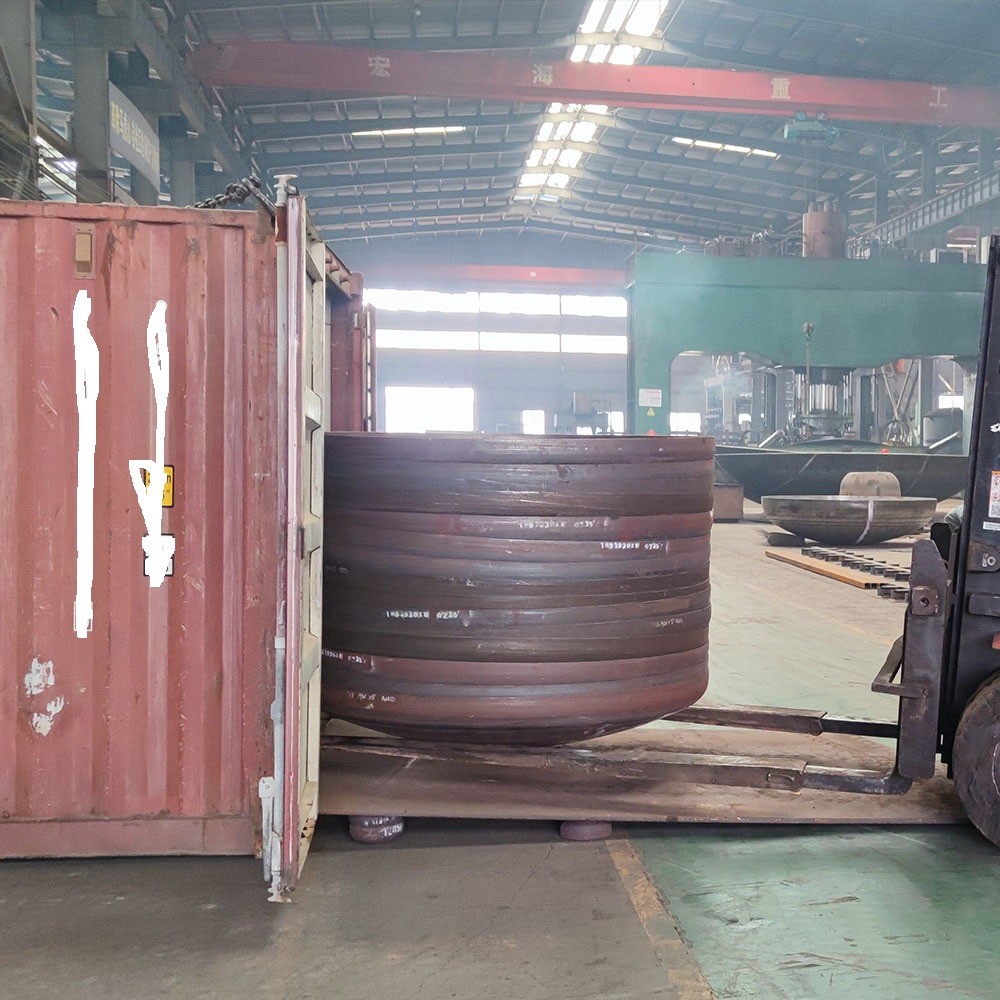

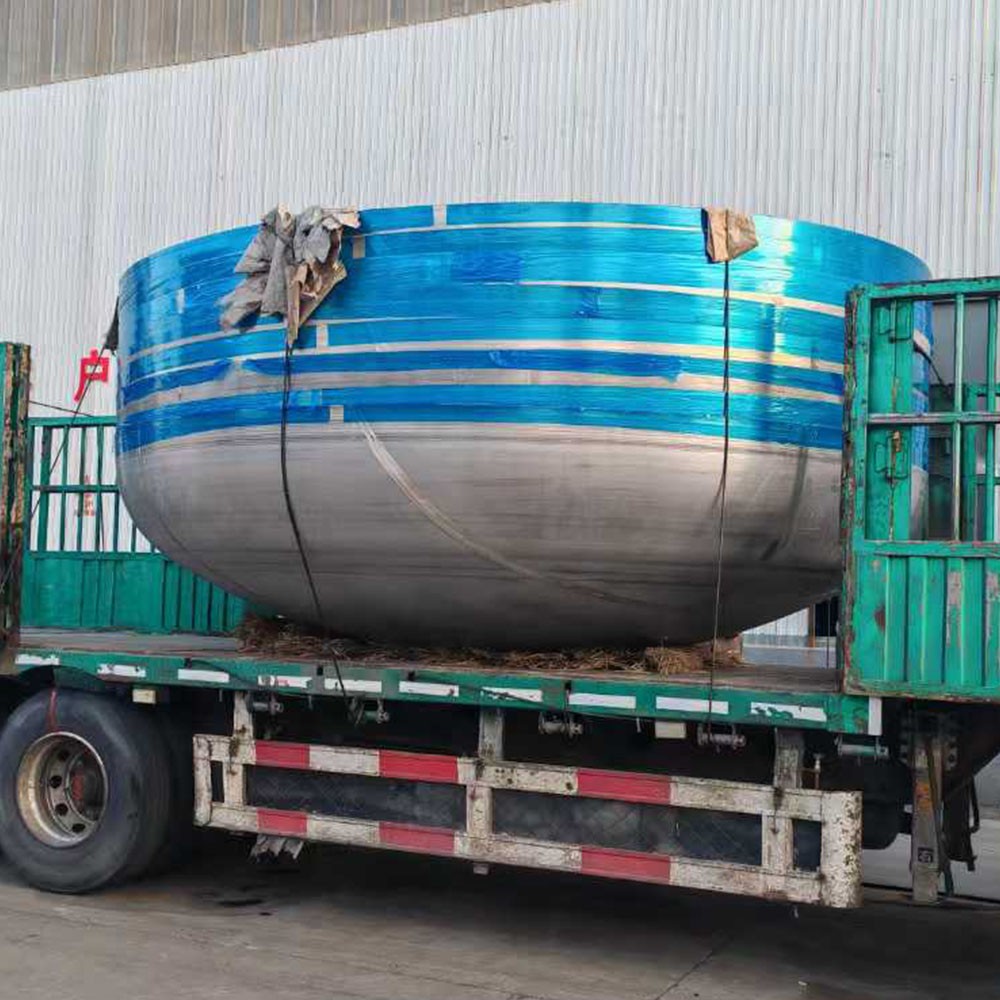

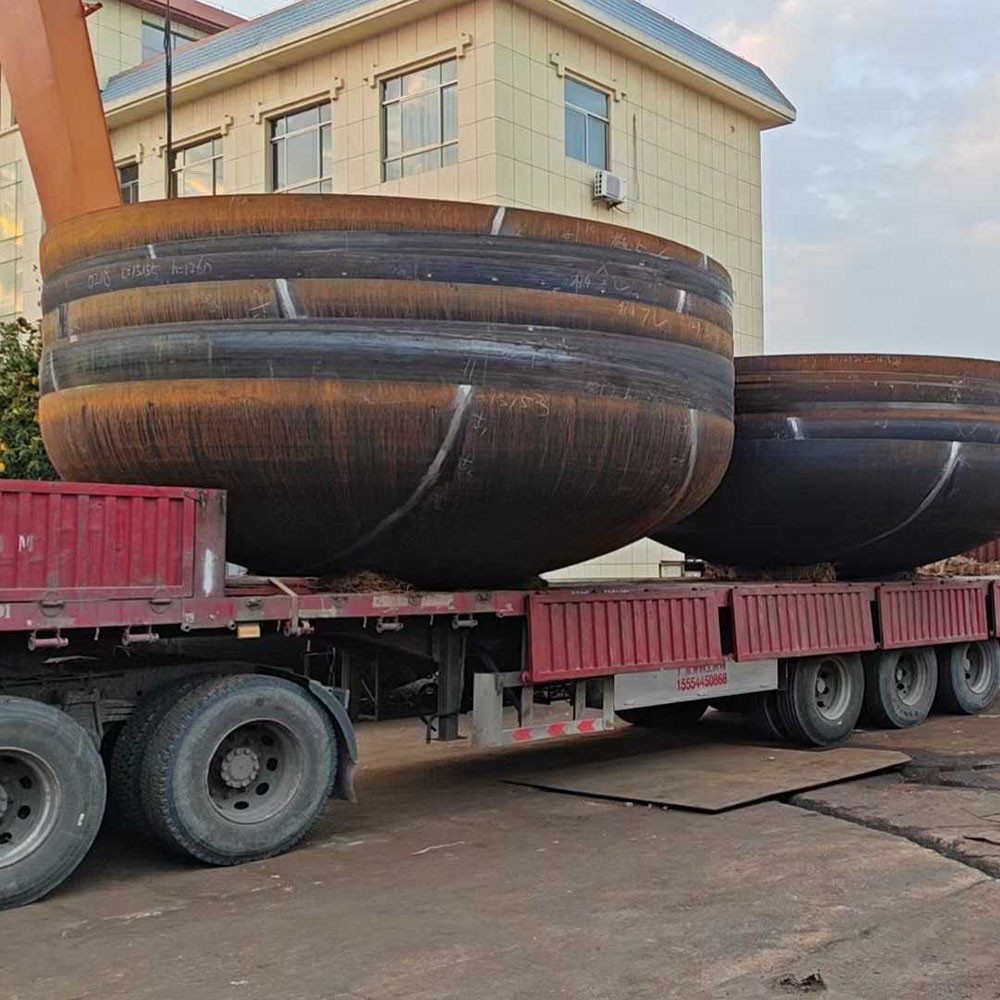

Packaging & Shipping

Haipei Industry Storage Tank Elliptical Dish Head

1. Iron Frame

2. Wooden Box

3. Iron pallet

4.Wooden pallet.

5.Professional fixation

6. Curstomed requirment

Carbon and stainless steel 2:1 ASME semi-elliptical tank heads. In stock tank head sizes minimum order $ 400. Pricing and quantities are subject to change.
